Merging Data Sets


Summary

For basic information, go through the IEBCOPY Utility (for Beginners)

  • IEBCOPY can perform the merge operation to merge the datasets.
  • Data sets merge by copying or loading the additional members to an existing PDS.
  • Ordering of the output data set after merge can be done automatically.

Practical Example -


Scenario - Re-create or Load a PDS from unloaded PS.

JCL -

----+----1----+----2----+----3----+----4----+----5----+----6----+----7--
***************************** Top of Data ******************************
//MATEPKM  JOB (123),'MTH',CLASS=A,MSGCLASS=A,MSGLEVEL=(1,1),
//             NOTIFY=&SYSUID
//****************************************************
//* TO MERGE MANY TO ONE PDS
//****************************************************
//STEP50   EXEC PGM=IEBCOPY
//SYSPRINT DD SYSOUT=*
//SYSOUT   DD SYSOUT=*
//SYSDUMP  DD SYSOUT=*
//INPPDS1  DD DSN=MATEPK.IEBCOPY.INPPDS,DISP=SHR
//INPPDS2  DD DSN=MATEPK.IEBCOPY.INPPDS1,DISP=SHR
//OUTPDS   DD DSN=MATEPK.IEBCOPY.OUTPDS,DISP=OLD
//SYSIN    DD *
    COPY  OUTDD=OUTPDS
          INDD=INPPDS1
          INDD=INPPDS2
/*
**************************** Bottom of Data ****************************

Job Status -

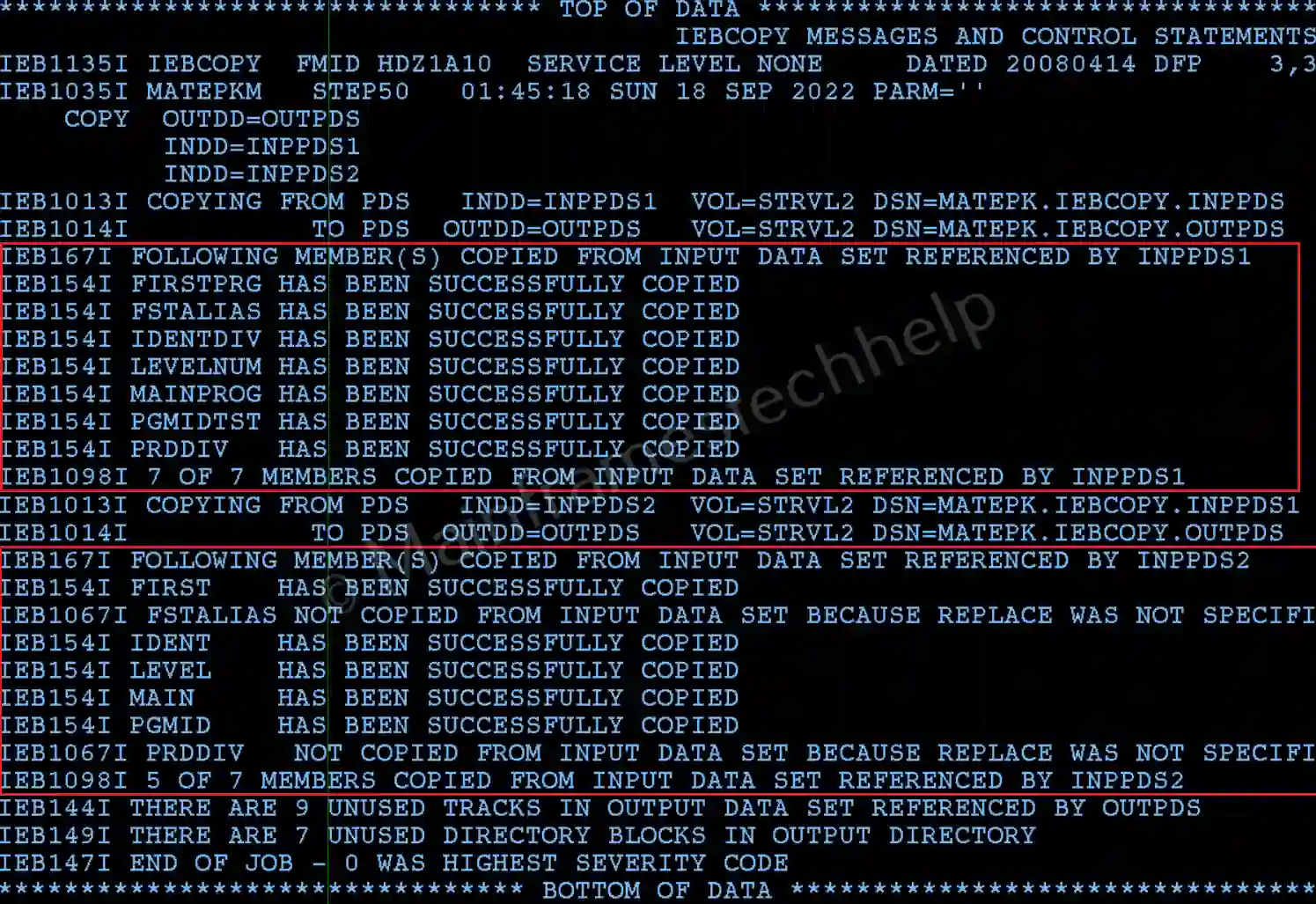

Merge Job Status

Output -

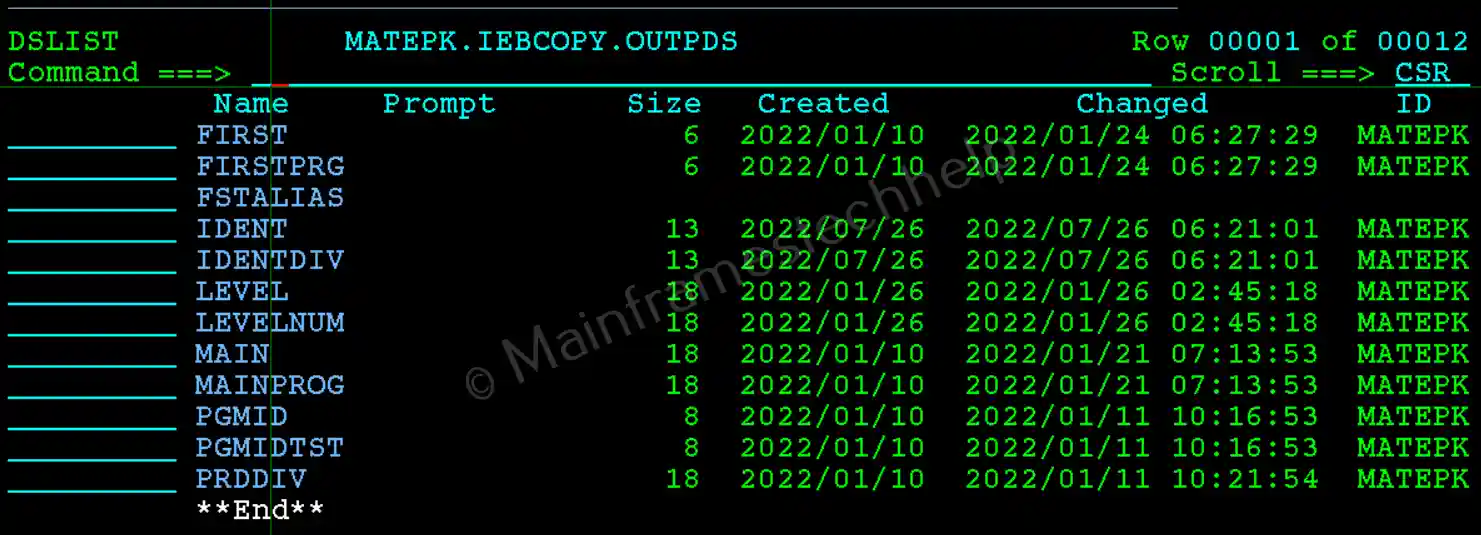

Merge Output

Explaining Example -

  • INPPDS1 DD DSN=MATEPK.IEBCOPY.INPPDS,..
    INPPDS2 DD DSN=MATEPK.IEBCOPY.INPPDS1,..
    - Specifies the input PDS file.
  • OUTPDS DD DSN=MATEPK.IEBCOPY.OUTPDS - Specifies the output PDS.
  • COPY OUTDD=OUTPDS
    INDD=INPPDS1
    INDD=INPPDS2
    - Specified INPPDS1, INPPDS2 are inputs and OUTPDS is output.
