Summary

For basic information, go through the IEBCOPY Utility (for Beginners)

  • IEBCOPY is used to copy a PDS from one volume to another fully or partially.
  • If the data set name changes, the new data set can be on the same volume.
  • Suppose the data set name is not different. In that case, IEBCOPY assumes the request is compressed and also assumes that the SELECT / EXCLUDE statements are not coded.
  • Members are copied in the same physical order as how they exist in the input data set.

Practical Example -

Scenario - Copy from one dataset to another resides on different volume.

JCL -

----+----1----+----2----+----3----+----4----+----5----+----6----+----7--
***************************** Top of Data ******************************
//MATEPKC  JOB (123),'MTH',CLASS=A,MSGCLASS=A,MSGLEVEL=(1,1),
//             NOTIFY=&SYSUID
//*****************************************************************
//* TO COPY PDS DATA SET ANOTHER PDS DATA SET ON DIFFERENT VOLUME
//*****************************************************************
//STEP10   EXEC PGM=IEBCOPY
//SYSPRINT DD SYSOUT=*
//SYSOUT   DD SYSOUT=*
//SYSDUMP  DD SYSOUT=*
//SYSUT1   DD DSN=MATEPK.IEBCOPY.INPPDS,DISP=SHR
//SYSUT2   DD DSN=MATEPK.IEBCOPY.OUTPDS,
//            DISP=(NEW,CATLG,DELETE),
//            SPACE=(TRK,(10,10,10),RLSE),
//            UNIT=3390,VOL=SER=DEVHD4,
//            DCB=(DSORG=PO,RECFM=FB,LRECL=80,BLKSIZE=800)
//SYSIN    DD *
     COPY INDD=SYSUT1,OUTDD=SYSUT2
/*
**************************** Bottom of Data ****************************

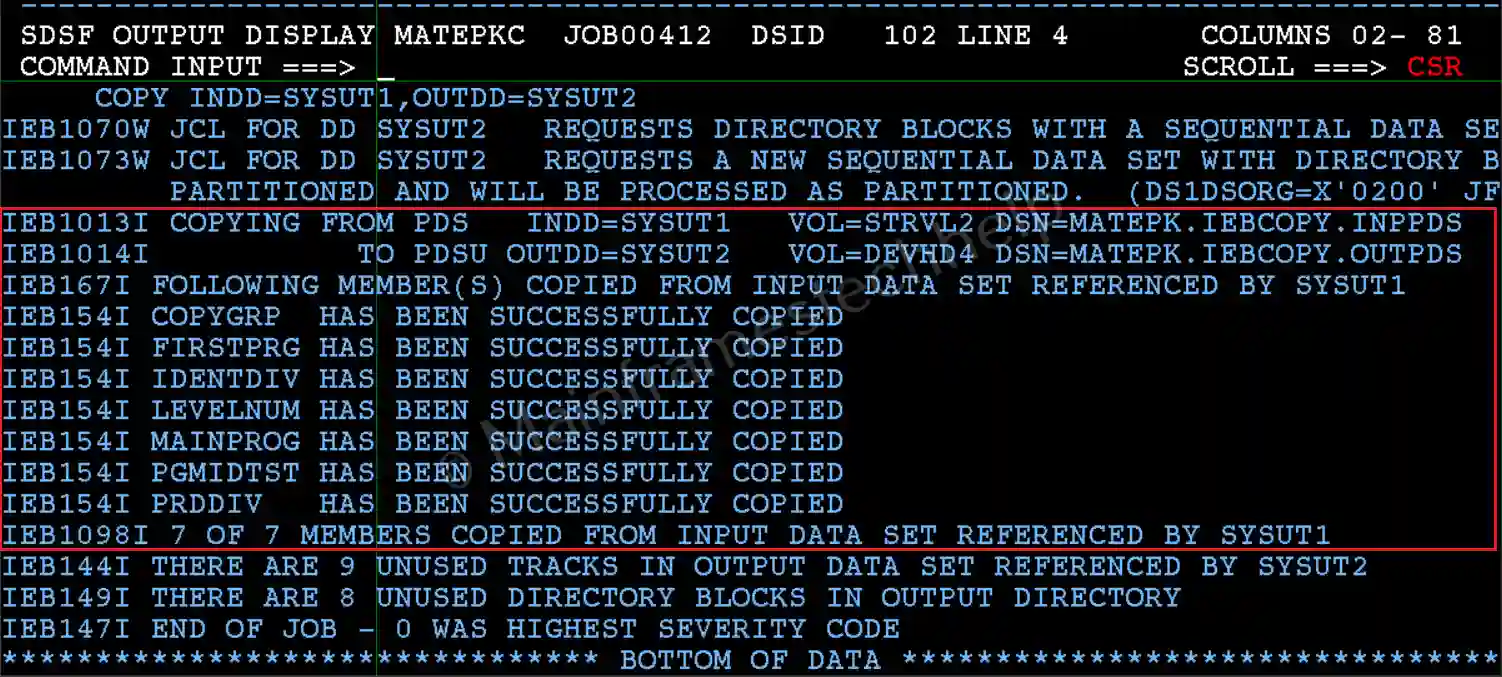

Job Status -

COPY Datasets Job Status

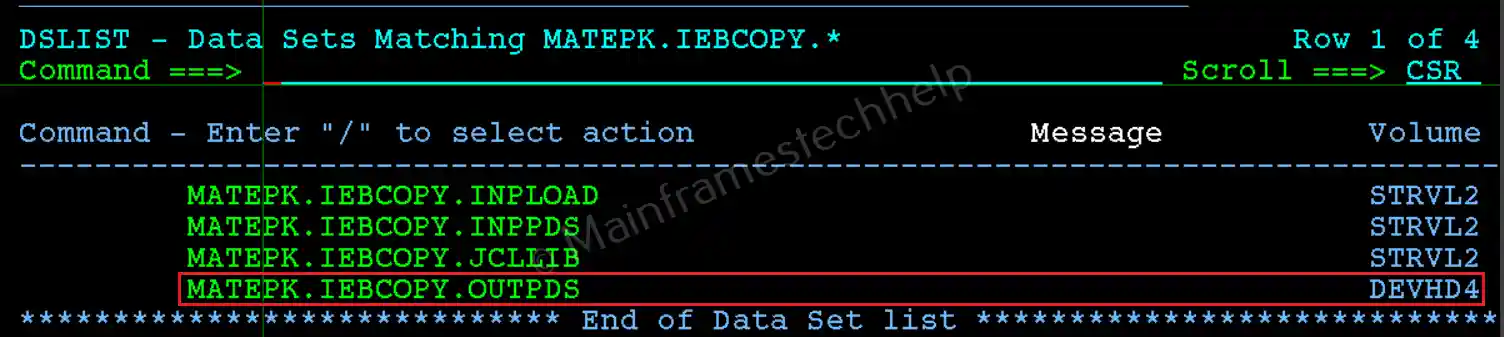

Output -

COPY Datasets Output

Explaining Example -

  • SYSUT1 DD DSN=MATEPK.IEBCOPY.INPPDS - Specifies the input PDS and resides on the volume STRVL2.
  • SYSUT2 DD DSN=MATEPK.IEBCOPY.OUTPDS,.. - Specifies the output new PDS and creating on the volume DEVHD4.
  • COPY INDD=SYSUT1,OUTDD=SYSUT2 - Copies all members from SYSUT1 to SYSUT2. Both input and output datasets are on different volumes.
