Altering Load Modules


Summary

For basic information, go through the IEBCOPY Utility (for Beginners)

  • IEBCOPY updates the load modules written by the link editor before MVS/370 to load faster.
  • ALTERMOD statement is a one-time update operation used on load modules from old systems to make them compatible with the latest systems.
  • ALTERMOD performs the update operation on the same load modules without taking a backup.

The ALTERMOD statement is ignored under these conditions -

  • The load modules are link edited with the noneditable (NE) attribute.
  • The data set is a PDSE.
Note! The SELECT statement is used to identify the member names and can't rename those members once processed.

Practical Example -


Scenario - Alter FIRSTPRG load in MATEPK.IEBCOPY.INPLOAD.

JCL -

----+----1----+----2----+----3----+----4----+----5----+----6----+----7--
***************************** Top of Data ******************************
//MATEPKI  JOB (123),'MTH',CLASS=A,MSGCLASS=A,MSGLEVEL=(1,1),
//             NOTIFY=&SYSUID
//***************************************************
//* ALTER FIRSTPRG LOAD MODULE FROM INPUT PDS
//***************************************************
//STEP10   EXEC PGM=IEBCOPY
//SYSPRINT DD SYSOUT=*
//SYSOUT   DD SYSOUT=*
//SYSDUMP  DD SYSOUT=*
//SYSUT1   DD DSN=MATEPK.IEBCOPY.INPLOAD,DISP=(OLD,KEEP)
//SYSUT2   DD UNIT=SYSDA,SPACE=(TRK,(5,1))
//SYSIN    DD *
 ALTERMOD  OUTDD=SYSUT1
       SELECT    MEMBER=(FIRSTPRG)
/*
**************************** Bottom of Data ****************************

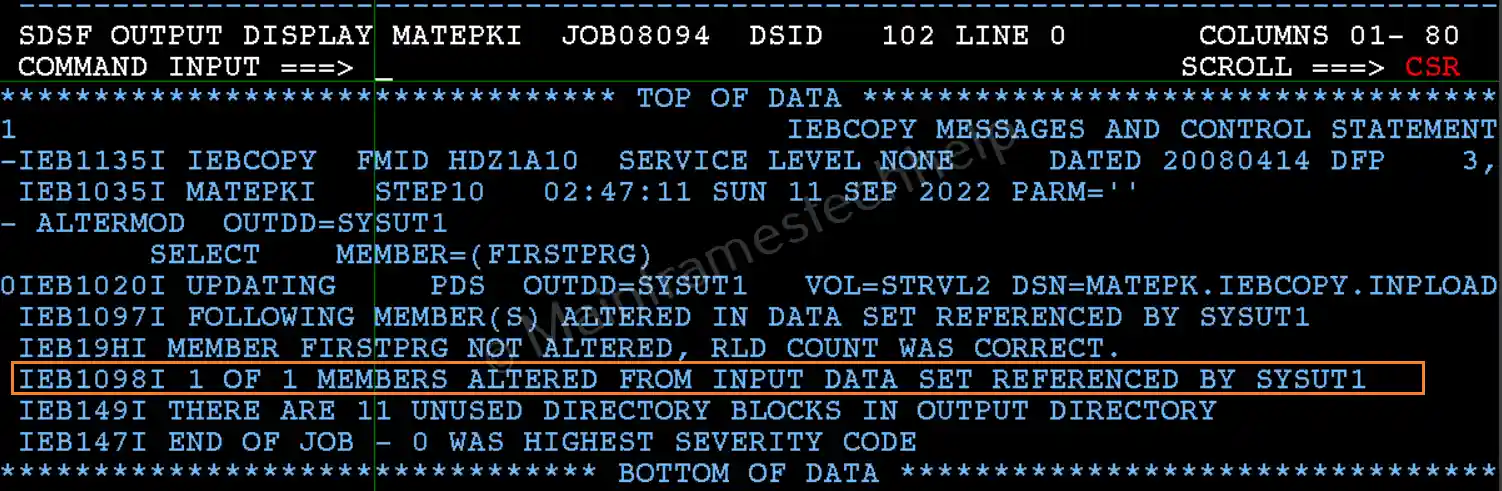

Output -

ALTERMOD Output

Explaining Example -

  • SYSUT1 DD DSN=MATEPK.IEBCOPY.INPLOAD - Specifies the PDS that has old load modules.
  • SYSUT2 DD - Provides the buffer space to process the operation.
  • SYSIN DD - Has the control statements for processing the input.
  • ALTERMOD OUTDD=SYSUT1 - Used to alter the load module from SYSUT1 DSN.
  • SELECT MEMBER=(FIRSTPRG) - FIRSTPRG member is the selected module for this operation.
