IMPORT
IMPORT Command (for Beginners)
Summary
For extensive information, go through the IMPORT Command (for Experienced)
The IMPORT command imports or restores a cluster, AIX, or catalog from a backup to the original.
The input is the backup created by EXPORT, and the output is the base file from where the data was exported earlier.
Detailed syntax -
//JOBNAME JOB job-card-parameters
//STEP1 EXEC PGM=IDCAMS
//SYSPRINT DD SYSOUT=*
//SYSIN DD *
IMPORT {INFILE(ddname)|INDATASET(dataset-name)}
{OUTFILE(ddname)| OUTDATASET(dataset-name)}
[ALIAS|NOALIAS]
[ERASE|NOERASE]
[INTOEMPTY]
[LOCK|UNLOCK]
[OBJECTS
((entryname
[FILE(ddname)]
[MANAGEMENTCLASS(class)]
[NEWNAME(newname)]
[STORAGECLASS(class)]
[VOLUMES(volser[ volser...])])
[(entryname...)...])]
[PURGE|NOPURGE]
[CATALOG(catname)]
/*Parameters
The IMPORT command mandatory and optional parameters are specified below -
Mandatory Parameters
| Parameters | Description |
|---|---|
| INFILE(ddname) | Specifies the input ddname that identifies the copy of the cluster or alternate index or user catalog. Short Description: IFILE |
| OUTFILE(ddname) | Specifies the output DDname that identifies the dataset, alternate index, or user catalog. Short Description: OFILE |
| INDATASET(dataset-name) | Specifies the input DSN name that contains a copy of the cluster, alternate index, or user catalog. Short Description: IDS |
| OUTDATASET(dataset-name) | Specifies the output DSN name of the cluster, alternate index, or user catalog. Short Description: ODS |
Optional Parameters
| Parameters | Description |
|---|---|
| ERASE | NOERASE | ERASE option makes the component overwrites with binary zeros or not when the cluster or alternate index is deleted. Short Description: ERAS | NERAS |
| INTOEMPTY | Specifies that the output dataset is an empty data set. Short Description: IEMPTY |
| LOCK | UNLOCK | Specifies the imported catalog is to be locked or unlocked. |
| PURGE | NOPURGE | Specifies the objects delete or not if the retention period has not expired. Short Description: PRG | NPRG |
Example -
Requirement - Import backup PS file to KSDS.
Input ESDS File - MATEPK.EMPL.BACKUP
Code -
----+----1----+----2----+----3----+----4----+----5----+----6----+----7--
***************************** Top of Data ******************************
//MATEPKI JOB (123),'MTH',CLASS=A,MSGCLASS=A,MSGLEVEL=(1,1),
// NOTIFY=&SYSUID
//************************************************************
//* IMPORT BACKUP PS DATA TO THE KSDS DATA SET
//************************************************************
//STEP010 EXEC PGM=IDCAMS
//SYSPRINT DD SYSOUT=*
//BACKUP DD DSN=MATEPK.EMPL.BACKUP,DISP=SHR
//SYSIN DD *
IMPORT -
INFILE(BACKUP) -
OUTDATASET(MATEPK.EMPL.KSDS) -
INTOEMPTY
/*
//*
**************************** Bottom of Data ****************************In the above JCL, MATEPK is the userid and change it as required.

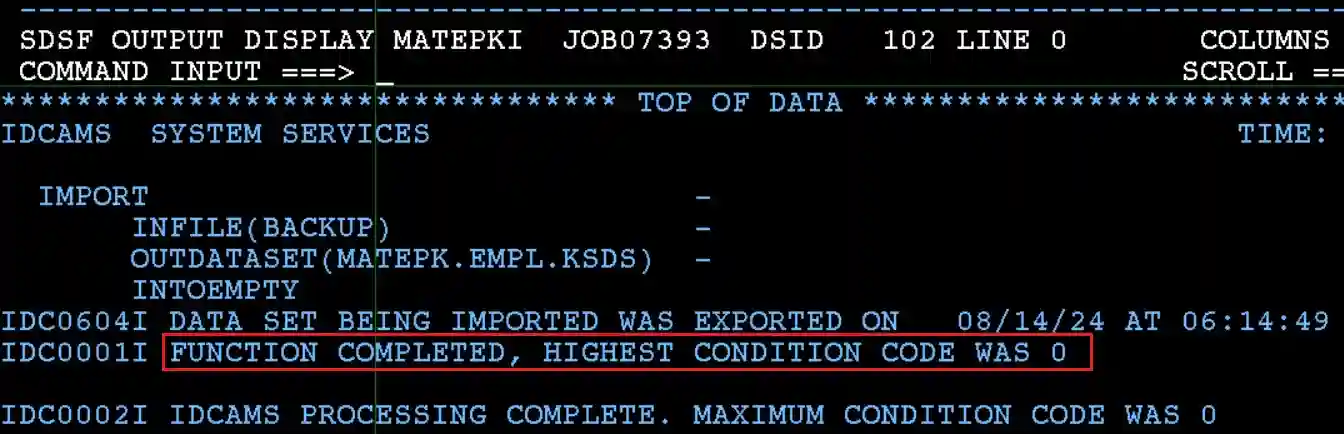

Output -
Once the above JCL is submitted, check the MAXCC of the job for any errors. If the MAXCC is 00 or 04, then REPRO is successful..
********************************* TOP OF DATA **********************************
IDCAMS SYSTEM SERVICES TIME: 07:28:10
IMPORT -
INFILE(BACKUP) -
OUTDATASET(MATEPK.EMPL.KSDS) -
INTOEMPTY
IDC0604I DATA SET BEING IMPORTED WAS EXPORTED ON 04/29/22 AT 07:25:33
IDC0508I DATA ALLOCATION STATUS FOR VOLUME DEVHD4 IS 0
IDC0509I INDEX ALLOCATION STATUS FOR VOLUME DEVHD4 IS 0
IDC0001I FUNCTION COMPLETED, HIGHEST CONDITION CODE WAS 0
IDC0002I IDCAMS PROCESSING COMPLETE. MAXIMUM CONDITION CODE WAS 0
******************************** BOTTOM OF DATA ********************************Explaining Example -
In the above example,
- INFILE(BACKUP) specifies the source backup PS file.
- OUTDATASET(MATEPK.EMPL.KSDS) specifies the original file that needs to create to import the data.
- INTOEMPTY specifies the target file is empty.
