The IMPORT command imports or restores a cluster, AIX, or catalog from a backup to the original.

The input is the backup created by EXPORT, and the output is the base file from where the data was exported earlier.

High-level syntax -

//JOBNAME  JOB job-card-parameters
//STEP1    EXEC PGM=IDCAMS
//SYSPRINT DD SYSOUT=*
//SYSIN    DD *
  IMPORT Command
/*

Detail syntax -

//JOBNAME  JOB job-card-parameters
//STEP1    EXEC PGM=IDCAMS
//SYSPRINT DD SYSOUT=*
//SYSIN    DD *
  IMPORT 	{INFILE(ddname)|INDATASET(dataset-name)}
  	{OUTFILE(ddname)| OUTDATASET(dataset-name)}
  	[ALIAS|NOALIAS]
  	[ERASE|NOERASE]
  	[INTOEMPTY]
  	[LOCK|UNLOCK]
  	[OBJECTS
  	  ((entryname
  	   [FILE(ddname)]
  	   [MANAGEMENTCLASS(class)]
  	   [NEWNAME(newname)]
  	   [STORAGECLASS(class)]
  	   [VOLUMES(volser[ volser...])])
  	 [(entryname...)...])]
  	[PURGE|NOPURGE]
  	[CATALOG(catname)]
/*

Parameters

The IMPORT command mandatory and optional parameters are specified below -

Mandatory Parameters

INFILE(ddname)

• Specifies the input ddname that identifies the copy of the cluster or alternate index or user catalog.

Short Description: IFILE

OUTFILE(ddname)

• Specifies the output DDname that identifies the dataset, alternate index, or user catalog.
• If the corresponding object has its DATA and INDEX components on different device types, specify OUTDATASET instead of OUTFILE.

Short Description: OFILE

INDATASET(dataset-name)

• Specifies the input DSN name that contains a copy of the cluster, alternate index, or user catalog.

Short Description: IDS

OUTDATASET(dataset-name)

• Specifies the output DSN name of the cluster, alternate index, or user catalog.

Short Description: ODS

Optional Parameters

ALIAS | NOALIAS

• ALIAS forces the IMPORT command to retrieve the exported aliases and define them for the catalog imported.
• NOALIAS results that no aliases are being imported.
• NOALIAS is the default if not specified.

Short Description: ALS or NALS

CATALOG (cat-name)

• Specifies the catalog name in which the imported object is to be catalogued.
• This parameter is ignored if the object is a catalog dataset.

Short Description: CAT

ERASE

• ERASE option makes the component overwrites with binary zeros when the cluster or alternate index is deleted.

Short Description: ERAS

NOERASE

• Specifies that the component leaves as it is without overwriting when the cluster or alternate index is deleted.

Short Description: NERAS

INTOEMPTY

• Specifies that the output dataset is an empty data set. If the INTOEMPTY parameter is not specified, an attempt to import into an empty dataset is unsuccessful.

Short Description: IEMPTY

LOCK

• Specifies the imported catalog is to be locked. Nonexisting or existing unlocked catalogs are defined as locked.

UNLOCK

• Specifies that the imported catalog is to be unlocked. Nonexisting or existing locked catalogs are defined as unlocked. If not specified, the catalog is unlocked.

OBJECTS
((entryname
[FILE(ddname)]
[MANAGEMENTCLASS(class)]
[NEWNAME(newname)]
[STORAGECLASS(class)]
[VOLUMES(volser[ volser...])])
[(entryname...)...])

• Specifies the new or changing attributes for the cluster, AIX, any associated paths, or user catalog to be imported.
• An error message is issued when importing a catalogue, and processing ends if specified NEWNAME.

PURGE

• Specifies the objects should delete if the retention period has not expired.

Short Description: PRG

NOPURGE

• Specifies the objects should not delete until the retention period has expired.

Short Description: NPRG

Example -

Requirement - Import backup PS file to KSDS.

Input ESDS File - MATEPK.EMPL.BACKUP

Code -

----+----1----+----2----+----3----+----4----+----5----+----6----+----7--
***************************** Top of Data ******************************
//MATEPKI JOB (123),'MTH',CLASS=A,MSGCLASS=A,MSGLEVEL=(1,1),
//             NOTIFY=&SYSUID
//************************************************************
//* IMPORT BACKUP PS DATA TO THE KSDS DATA SET
//************************************************************
//STEP010  EXEC PGM=IDCAMS
//SYSPRINT DD SYSOUT=*
//BACKUP   DD DSN=MATEPK.EMPL.BACKUP,DISP=SHR
//SYSIN    DD  *
  IMPORT                             -
       INFILE(BACKUP)                -
       OUTDATASET(MATEPK.EMPL.KSDS)  -
       INTOEMPTY
/*
//*
**************************** Bottom of Data ****************************

In the above JCL, MATEPK is the userid and change it as required.

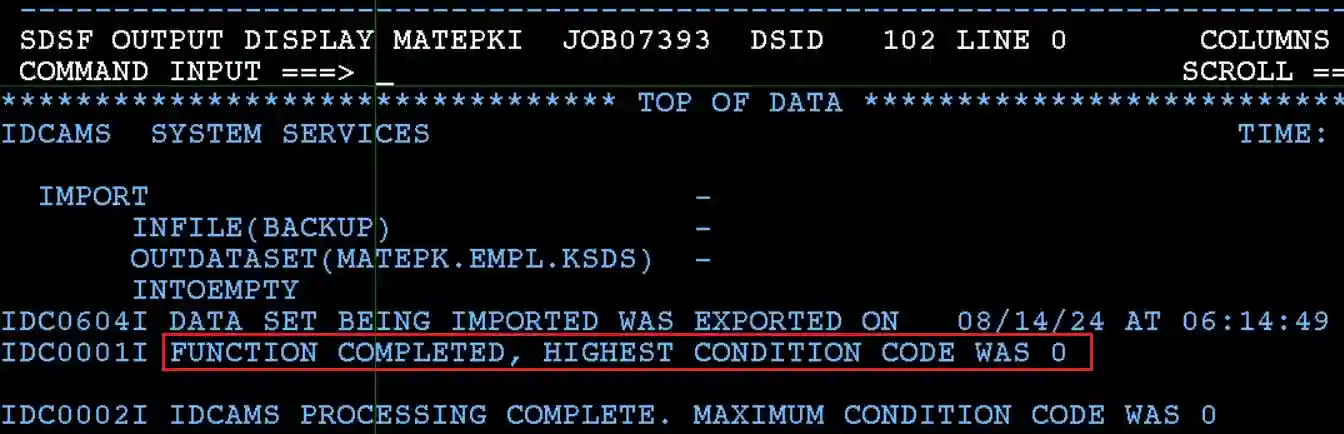

Output -

Once the above JCL is submitted, check the MAXCC of the job for any errors. If the MAXCC is 00 or 04, then REPRO is successful..

********************************* TOP OF DATA **********************************
IDCAMS  SYSTEM SERVICES                                           TIME: 07:28:10

  IMPORT                             -
       INFILE(BACKUP)                -
       OUTDATASET(MATEPK.EMPL.KSDS)  -
       INTOEMPTY
IDC0604I DATA SET BEING IMPORTED WAS EXPORTED ON   04/29/22 AT 07:25:33
IDC0508I DATA ALLOCATION STATUS FOR VOLUME DEVHD4 IS 0
IDC0509I INDEX ALLOCATION STATUS FOR VOLUME DEVHD4 IS 0
IDC0001I FUNCTION COMPLETED, HIGHEST CONDITION CODE WAS 0

IDC0002I IDCAMS PROCESSING COMPLETE. MAXIMUM CONDITION CODE WAS 0
******************************** BOTTOM OF DATA ********************************

Explaining Example -

In the above example,

• INFILE(BACKUP) specifies the source backup PS file.
• OUTDATASET(MATEPK.EMPL.KSDS) specifies the original file that needs to create to import the data.
• INTOEMPTY specifies the target file is empty.
