STATS Operator (for Experienced)


  • STATS operator prints the minimum, maximum, average, and total messages for specified numeric fields in a dataset.
  • For example, the average is calculated by dividing the total by the record count and rounding down to the nearest integer.

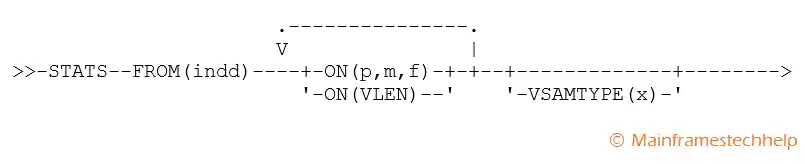

Syntax -

STATS Operator

Required Operands


FROM -

  • FROM parameter specifies ddname of the input file.
  • indd DD statement is mandatory if FROM operand specified.

ON -

  • ON operator specifies the field(s) used for DISPLAY operation.
  • 1 to 50 ON fields can be specified with the DISPLAY operation.
    • (p,m,f) gives the position, length, and format of a numeric or character field. The field should not be beyond position 32752 or the end of the record.
    • (p,m,f, formatting) gives a numeric or character field's position, length, and format. It also specifies how the data is to be formatted for printing for this field. The field should not be beyond position 32752 or the end of the record.
    • VLEN is equivalent to ON(1,2, BI) for variable-length records, representing each record's record length.

Optional Operands


VSAMTYPE -

  • VSAMTYPE operand specifies the record format for a VSAM input file (F or V).

LMSG -

  • Specifies the minimum, maximum, average, and total for all numeric fields are printed as 31 digits.

Example -


Scenario - Display statistics for numeric field.

In the below example, we are display statistics for employee salary field (from 70-79 columns).

INPUT1 - MATEPK.INPUT.PSFILE5

 BROWSE    MATEPK.INPUT.PSFILE5                       Line 00000000 Col 001 080
 Command ===>                                                  Scroll ===> CSR
----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
********************************* Top of Data **********************************
001  PAWAN         MAINFRAME           JPM       AP        IN        0000100000
002  SRINIVAS      TESTING             ORACLE    TG        IN        0000095000
003  SRIDHAR       SAS                 CG        OR        US        0000080000
004  VENKATESH     ABAP                CSC       CA        IN        0000053000
005  RAVI          HADOOP              CTS       FL        US        0000072000
006  PRASAD        HR                  INFOSYS   MI        US        0000066000
007  RAJA          TESTING             IBM       CA        US        0000047000
******************************** Bottom of Data ********************************

JCL -

----+----1----+----2----+----3----+----4----+----5----+----6----+----7--
***************************** Top of Data ******************************
//MATEPKST JOB (123),'MATEPK',CLASS=A,MSGCLASS=A,MSGLEVEL=(1,1),
//             NOTIFY=&SYSUID
//*
//STEP01   EXEC PGM=ICETOOL
//INDD     DD DSN=MATEPK.INPUT.PSFILE5,DISP=SHR
//TOOLIN   DD *
  STATS  FROM(INDD) ON(70,10,ZD)
/*
//TOOLMSG  DD SYSOUT=*
//DFSMSG   DD SYSOUT=*
//
**************************** Bottom of Data ****************************

TOOLMSG (SDSF SPOOL) - Verify TOOLMSG for the return code of the submitted job.

----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8----+----9
********************************* TOP OF DATA ********************************************
1ICE600I 0 DFSORT ICETOOL UTILITY RUN STARTED

 ICE650I 0 VISIT http://www.ibm.com/storage/dfsort FOR ICETOOL PAPERS, EXAMPLES AND MORE

 ICE632I 0 SOURCE FOR ICETOOL STATEMENTS:  TOOLIN


 ICE630I 0 MODE IN EFFECT:  STOP

             STATS  FROM(INDD) ON(70,10,ZD)
 ICE627I 0 DFSORT CALL 0001 FOR COPY FROM INDD     TO E35 EXIT COMPLETED
 ICE628I 0 RECORD COUNT:  000000000000007
 ICE607I 0 STATISTICS FOR (70,10,ZD)    :
 ICE608I 0   MINIMUM:  +000000000047000, MAXIMUM:  +000000000100000
 ICE609I 0   AVERAGE:  +000000000073285, TOTAL  :  +000000000513000
 ICE602I 0 OPERATION RETURN CODE:  00


 ICE601I 0 DFSORT ICETOOL UTILITY RUN ENDED - RETURN CODE:  00
******************************** BOTTOM OF DATA ******************************************

Explaining Solution -

  • INDD - Specifies the ddname for input file.
  • TOOLIN DD * - Specifies the ICETOOL statements for DFSORT.
  • TOOLMSG - Specifies where to write the ICETOOL processing messages.
  • DFSMSG - Specifies where to write the DFSORT processing messages.
  • STATS FROM(INDD) ON(70,10,ZD) - Prints the maximum, minimum, average etc of the key field(salary 70-79 columns) specified in criteria.
